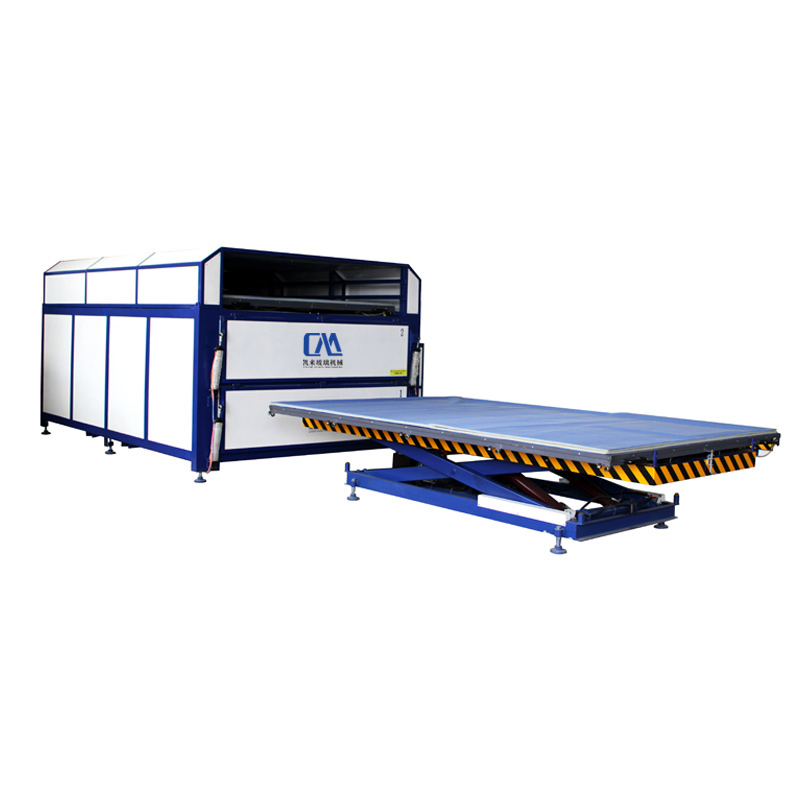

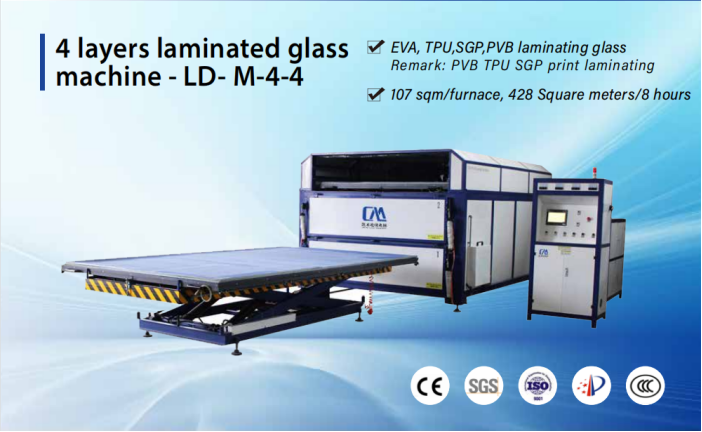

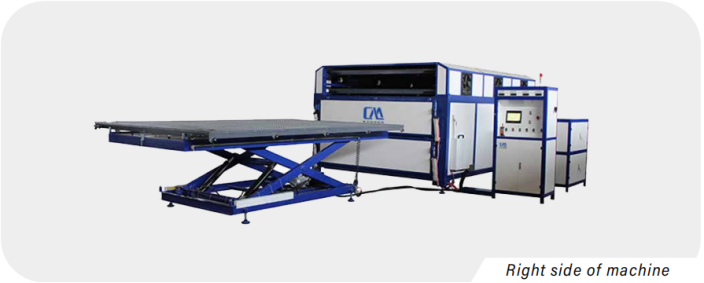

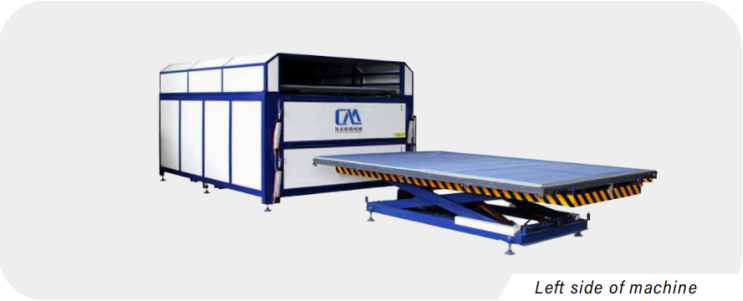

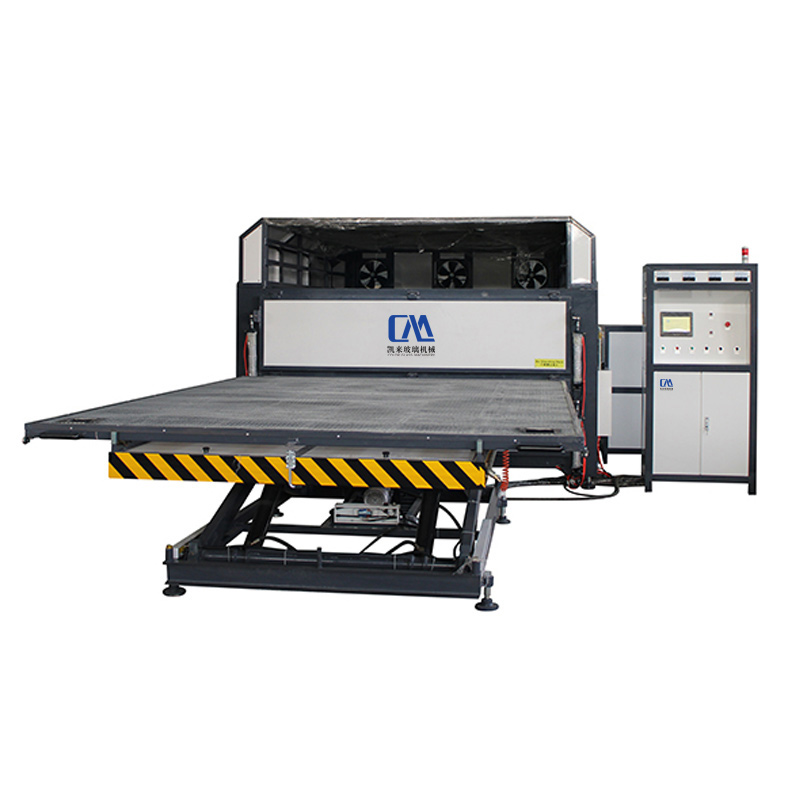

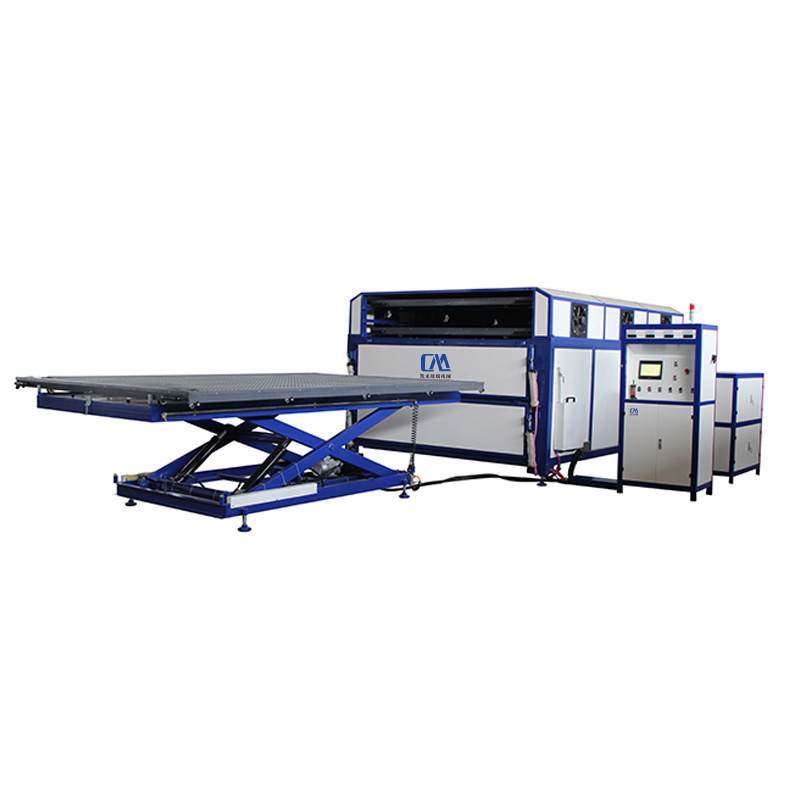

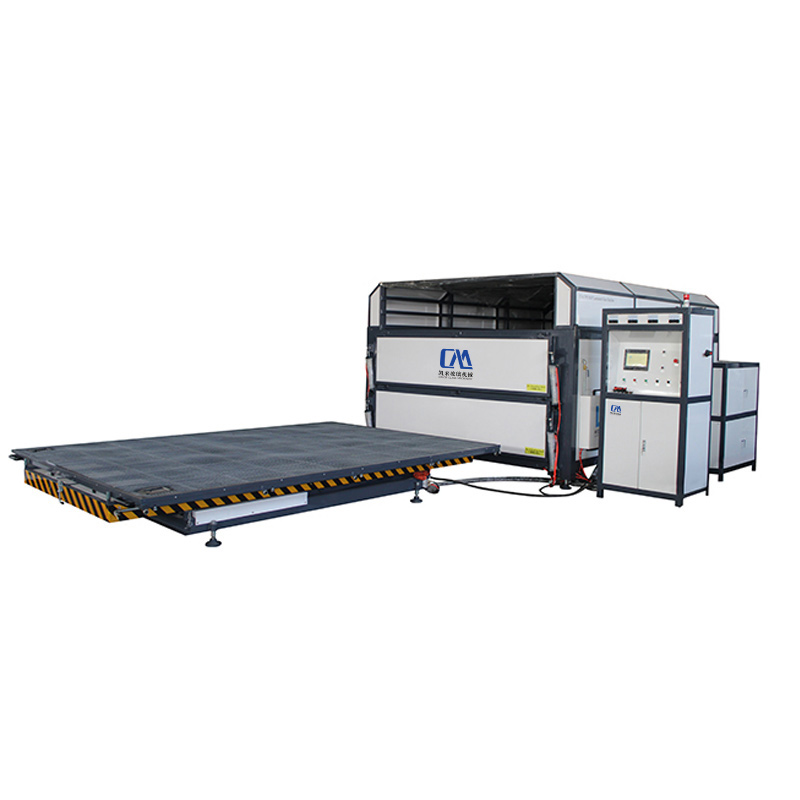

4 Layers glass laminating machine

2

Power input

3 Phase, AC 220V-380V, 50HZ

3

Power consumption

80kw / h

4

Max processing glass size

max size (mm): 2440x3660mm, customized available

max arch height (mm): 400 mm

max thickness (mm): 60 mm

5

Processing cycle

60-120 min/furnace,

6

Max capacity

107 sqm/furnace, 428 sqm/day(8 hours/working day)

7

Operation plateform:

4 layers

8

Working temperature

100-140 ℃

9

Footprint area

L*W*H:8600*3400*2200 mm (The distribution box is integrated to reduce the floor space)

10

Net weight

4958 kg

11

Delivery time

20 days after received prepayment

12

Payment term

T/T, T/T, L/C,D/P.

13

MOQ

1 sets

14

Packing

Density fiberboard

15

Remark

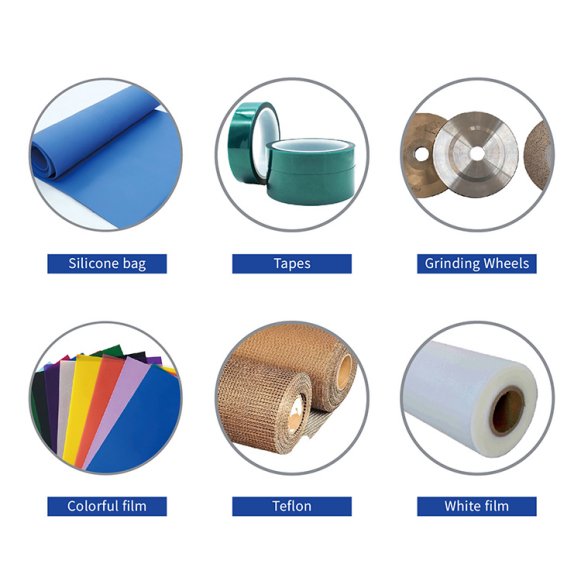

There are 4 processing plate and 4 silica gel bag with the machinery.
